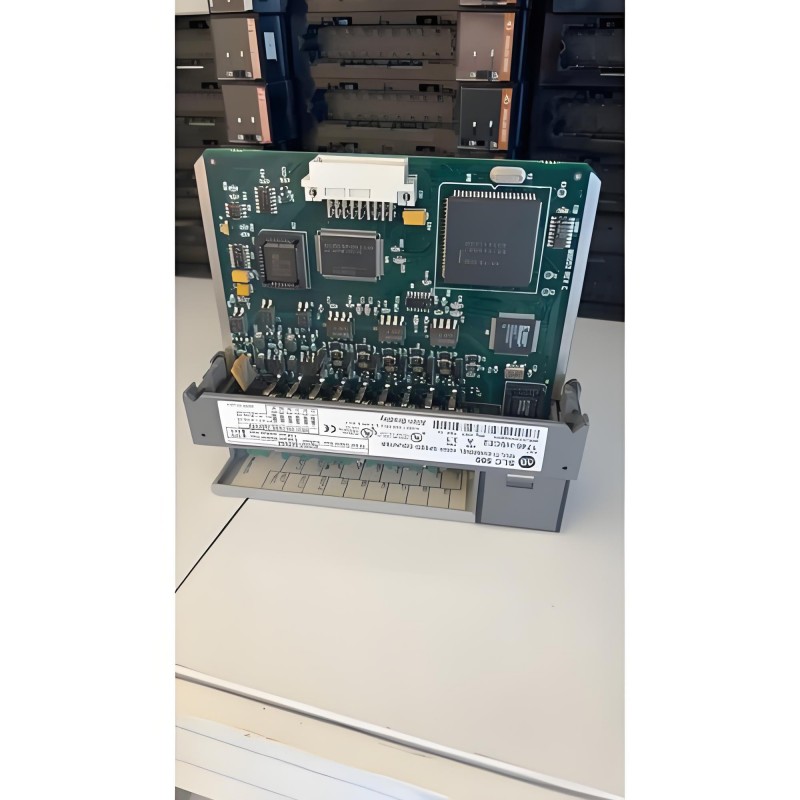

Allen Bradley 1746 HSCE

Choosing Hanhuiguan, you will have an exclusive manufacturer partner. The Allen-Bradley 1746-HSCE high-speed counter module we recommend is tailored for Rockwell Automation's SLC 500 series programmable logic controller (PLC) platform, ensuring that your automation system runs efficiently and stably.

Module Type and Compatibility: The 1746-HSCE is a high-speed counting module that is compatible with the SLC 500 series and can be used with SLC 5/02 (and above) processors.
Inputs and Outputs: The Allen-Bradley 1746-HSCE has 4 high-speed inputs (A, B, Z phases) and 4 open-collector outputs. Its input signals include 5VDC differential inputs and 0-5VDC single-ended inputs with a maximum input frequency of up to 50kHz. In addition, there is a limit switch input.
Counting Functions: The 1746-HSCE has bidirectional counting capabilities and can detect movement in either direction. Both x2 and x4 counting modes are provided to fully utilize the capabilities of high-resolution quadrature encoders. The module supports input pulse frequencies up to 50kHz, suitable for precise control of fast motion.
Operating Modes: The Allen-Bradley 1746-HSCE can be configured to operate in a variety of modes, including range mode, ratio mode, and sequencer mode. Totalizing counters and rate counters are also available, the latter determining rate measurements by displaying the pulse input frequency in Hz.
Power and Mounting: The 1746-HSCE module has a power supply range of 5-24VDC and is DIN rail mountable.

Q: Are there other models of high-speed counters?
A: Yes, in addition to the Allen-Bradley 1746-HSCE high-speed counter module, there are many other models of high-speed counters, such as: Allen-Bradley 1747-HC series, Siemens SIMATIC FC series...
Q: What safety precautions should be taken during installation?
A: Before starting the installation of the Allen-Bradley 1746-HSCE, make sure that all relevant power supplies are disconnected and the equipment is fully discharged. The specific installation steps should refer to the installation manual and guide provided by the manufacturer.
Q: When will the item be shipped?
A: The model is different, we will communicate with you in time.
