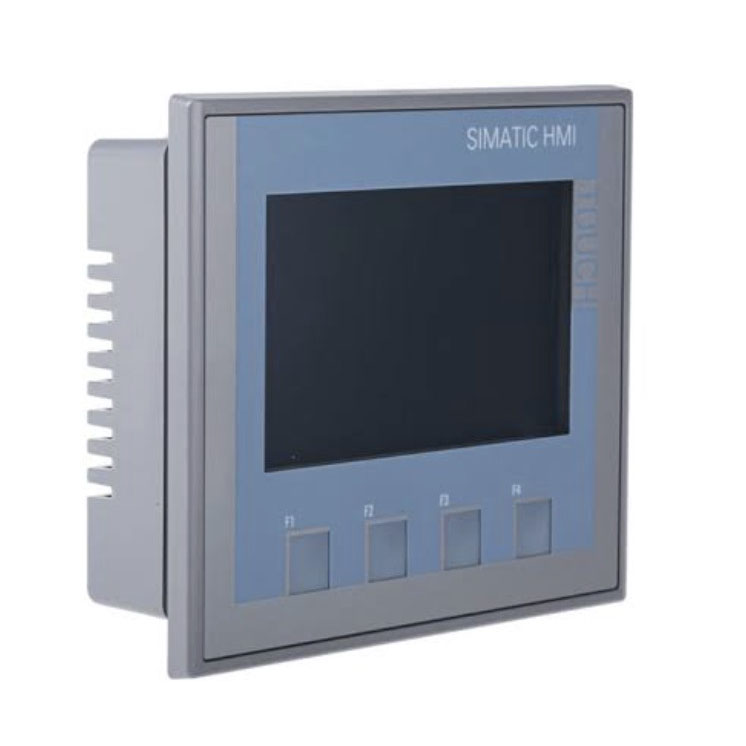

Siemens 6AV2123-2DB03-0AX0

In China, if you wish to purchase the in-stock Siemens 6AV2123-2DB03-0AX0 integrated 4.3-inch TFT color touch screen + function keys + PROFINET communication interface, welcome to Rayon Automation. It supports configuration through TIA Portal / WinCC Basic and is widely used in scenarios such as mechanical equipment, production lines, and automation control cabinets.

Compared with large HMI devices, the 4.3-inch small-sized screen combined with the ultra-thin body structure saves the installation space of the control cabinet, and is suitable for the compact integration requirements of OEM equipment. Touchscreen + physical button dual operation mode
To meet the strict requirements of industrial sites for the long-term reliable operation of equipment, the Siemens 6AV2123-2DB03-0AX0 adopts a combination design of touch screen and function buttons. For complex parameter input, menu switching, status monitoring and formula setting, the function buttons are specifically used for quick start/stop, manual control and emergency operations, thereby improving operational efficiency.
Standardized communication and excellent connectivity
Standardized with an industrial Ethernet PROFINET interface, it supports high-speed and stable data exchange with Siemens and third-party devices that support the PROFINET protocol, easily integrating into existing industrial networks, enabling remote monitoring and data collection of equipment, and providing interfaces for digital upgrades.
High cost-effectiveness and balanced functionality
As a Basic series product, it has stripped away complex advanced functions and supports 65,536 color displays (with clearer graphics), formula management (facilitating multiple product switching), alarm views (clearly showing faults), and data recording (exportable to a USB drive via USB), fully capable of meeting the monitoring needs of most basic automation equipment.

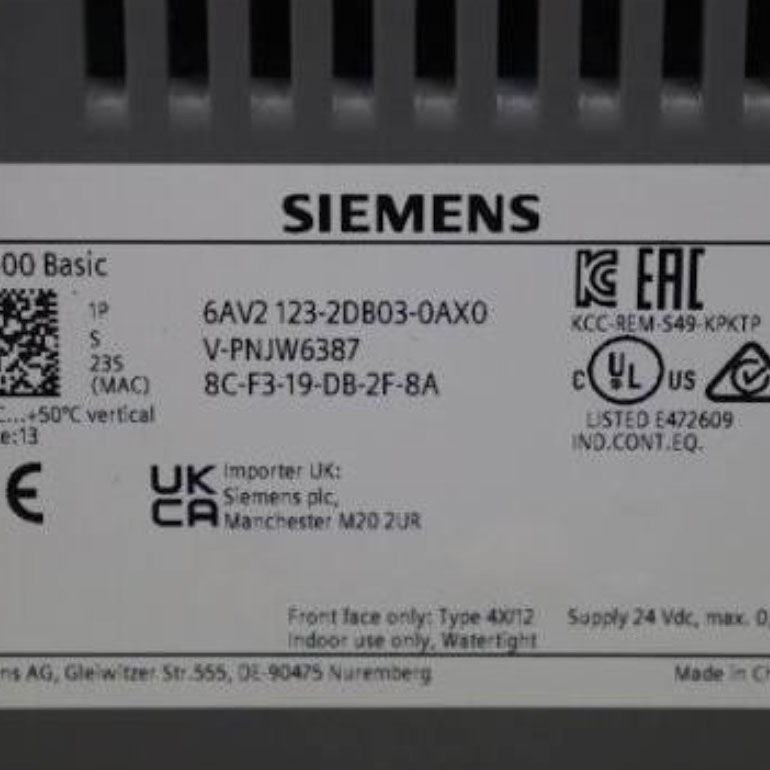

The Siemens 6AV2123-2DB03-0AX0, as the SIMATIC HMI KTP400 Basic Panel, is designed in accordance with international quality and safety standards. It has obtained CE certification, supports UL certification, complies with North American industrial equipment safety regulations, has undergone rigorous environmental adaptability, electrical safety and reliability tests, meets the requirements of the industrial control field for stable operation, anti-interference ability and long-term service life, and is suitable for mechanical manufacturing, production line control, OEM equipment and industrial automation system integration applications worldwide.

With the high recognition of the international brand and a complete global maintenance system, Siemens 6AV2123-2DB03-0AX0 is used for packaging machinery, printing equipment, assembly equipment, injection molding machinery and factory production lines. It is used for equipment status monitoring, parameter adjustment, fault alarm, as well as pump stations and process control in water treatment equipment, HVAC systems, compressor control and OEM equipment exports.

1. Confirm the software version and ensure that your engineering environment has installed TIA Portal V13 or a higher version.
2. The Siemens 6AV2123-2DB03-0AX0 is specifically optimized for communication with the Siemens SIMATIC S7 series PLC. If connecting to a third-party PLC, it is necessary to confirm whether its PROFINET IO controller is supported.
3. The panel is installed in an embedded manner. Holes need to be drilled on the control cabinet panel, with the standard hole size approximately 165×119mm.
4. Appropriate 24V DC power cables and industrial Ethernet cables need to be prepared according to the on-site conditions. Necessary accessories should be prepared, excluding power cables and PROFINET network cables.
