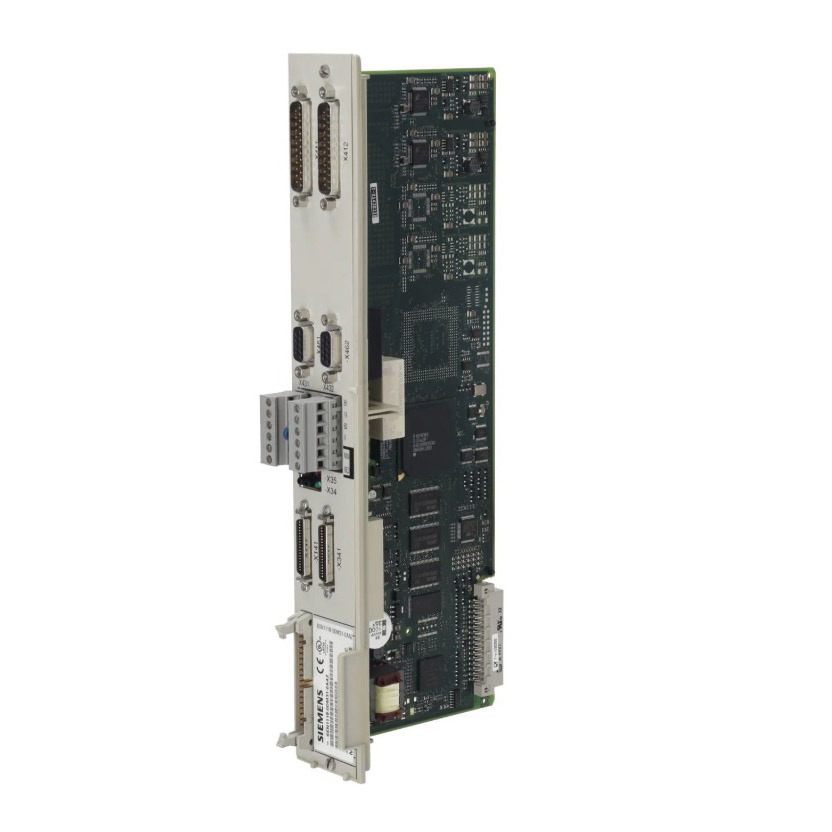

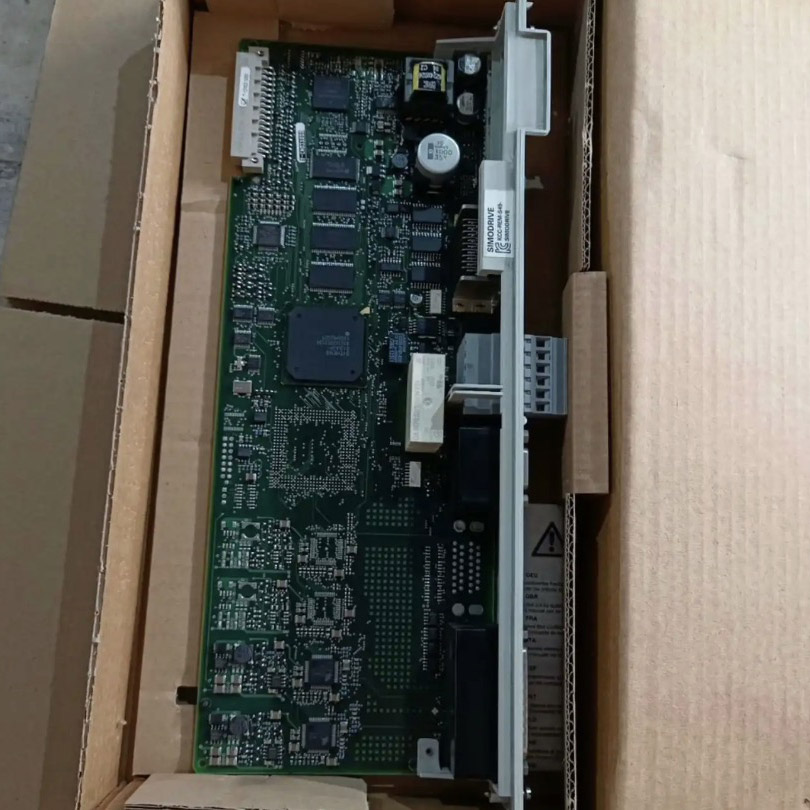

Siemens 6SN1118-0DM31-0AA2

In China, Rayon Automation offers high-quality, in-stock Siemens 6SN1118-0DM31-0AA2 components, which are mainly used for achieving high-precision position, speed and torque control of servo motors. They are the core components of many high-end CNC machines and automation equipment.
It is installed on the SIMODRIVE 611 frame using a pull-out module design. This integrates the complete control functions of 2 axes, supports SIN/COS 1Vpp encoder signals, and offers higher resolution and stronger anti-interference ability compared to traditional square wave encoders. It can conduct high-speed data exchange with the numerical control system NCU or PLC, receive instructions and feedback status, forming a fully digital drive system.

From component selection, PCB design, assembly and welding, to final functional testing and aging inspection, the entire production process of Siemens 6SN1118-0DM31-0AA2 is strictly controlled by Siemens' unified high standards. It complies with the requirements of the EU regarding safety, health, environmental protection and consumer protection, and has obtained the UL safety standards for the US and Canadian markets. When entering the Chinese market, it has the compulsory product certification (CCC), proving that it fully complies with the national standards of China in terms of electrical safety and electromagnetic compatibility.

Which types of encoder signal interfaces are supported?
The high-resolution analog signal interface can provide higher subdivision accuracy than the traditional square wave, and is used to support the SIN/COS 1Vpp incremental encoder signal.
Is hot plugging supported? What should be noted when replacing?
It is not recommended to perform hot plugging while the system is powered on. The design is modular, but before replacing the shaft card, the main power supply of the system must be turned off and allowed to wait for at least several minutes to ensure that the capacitors have discharged completely.
What are the special requirements in terms of software and system compatibility?
Starting from April 6, 2009, the Siemens 6SN1118-0DM31-0AA2 requires that the NCU end of the numerical control system (NCU) must have the corresponding version of NC software support. When replacing or conducting the first debugging, confirm that the software version date of the numerical control system is after this point; otherwise, compatibility faults such as module unrecognition or communication alarms may occur.

The Siemens 6SN1118-0DM31-0AA2 covers four major functions: instruction reception, signal processing, closed-loop regulation, and diagnosis and protection. It receives position, speed or torque instructions from the numerical control system, processes high-resolution feedback signals of SIN/COS 1Vpp from the motor encoder, calculates the required current for the motor in real time through complex algorithms, and controls the power to drive the motor. It also has monitoring and diagnostic functions, capable of detecting abnormal situations such as motor overload, feedback breakage, and communication failures, and reporting them to the numerical control system.
