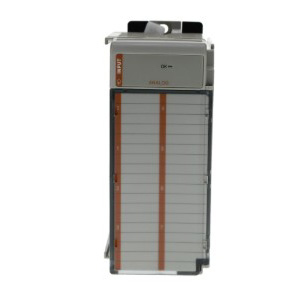

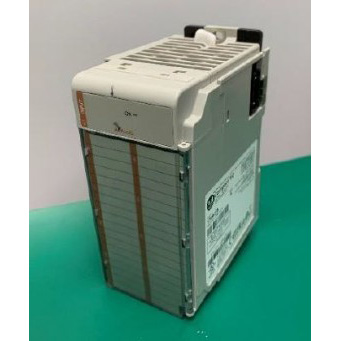

Rockwell 1769-IF8

As a professional supplier, Rayon Automation offers you this Rockwell 1769-IF8. It is a high-density analog input module. Its core function is to accurately convert the continuous changing voltage or current signals sent by various sensors in the field, such as 0-10V, 4-20mA, etc., into digital codes that the PLC processor can understand. Just think about it, this module can connect 8 signals at a time, which is twice the density of that 4-channel module. For projects with a large number of sensors, it can help you save valuable rack space and avoid buying an additional module, thereby saving budget. If this thing malfunctions, your system becomes "blind", and the pressure, temperature, and flow data from the field cannot be received, and the control logic cannot be executed either. Therefore, it is the core bridge connecting the physical world and digital control.

Send Inquiry

Product Description

Rayon Automation has specially prepared a highly classic "data acquisition main force" - Rockwell 1769-IF8 - for overseas PLC system integrators, factory equipment maintenance supervisors, and automation project engineers in this CompactLogix control system. When undertaking medium-sized projects or expanding production lines, people often encounter such a dilemma: there is little space left in the cabinet, but there are still more than ten sensor signals to be connected. If you purchase a 4-channel module, the number of slots is simply insufficient. This 8-channel analog input module was created to solve the contradiction between "high-density signal connection and space saving". It can double your signal connection capacity without increasing the length of the rack. As a partner deeply involved in Rockwell Automation, we recommend this high-quality product that has undergone full-channel linearity calibration and communication bus load testing to you, in order to ensure that your control system can also have strong data throughput capabilities in a compact space.

Product advantages

The advantages of our Rockwell 1769-IF8 model are "original color" and "perfect contact". Our back bus pins are shiny as new, without oxidation blackness, and in very tight contact when inserted into the base, which is essential for high-speed data transfer. The locking mechanism of the terminal block is intact, without any slipping or breakage. The wiring is very secure. It makes you feel at ease when using it, and you don't have to worry about intermittent signals due to poor contact. For customers who value high reliability, this original quality is the most worry-free option.

Parameters

Product Model	Rockwell 1769-IF8
Product Type	Analog Input Module
Input Channels	8 Single-Ended Inputs
Input Signal Type	Voltage / Current (Configurable)
Resolution	16-bit Resolution (High Precision)
Data Format	Engineering Units / Raw Data / Scaled for PID
Isolation Features	Photoelectric Isolation (System Safety Protection)
Applicable Systems	CompactLogix L3x, L4x, L5x, MicroLogix 1500

How to maintain

Our Rockwell 1769-IF8 module is very easy to maintain. Since it mainly collects signals passively and generates little heat itself, the main focus is on "securely tightening the connections". Regularly check if the terminal screws are loose to prevent an increase in contact resistance and affect the readings. If you notice that the readings are a little inaccurate, you can calibrate it with a standard signal source. As long as the environmental temperature is suitable, the cabinet has good ventilation, and there is no conductive dust, it rarely has problems and can operate quietly for many years.
