Reliance Electric 45C44

Hanhui Guan Company has specially prepared a key signal processing component in the DC drive system, namely the Reliance Electric 45C44 signal regulator module, for overseas industrial automation maintenance engineers and factory equipment supervisors. As you are familiar with when dealing with those old-fashioned DC motors, whether the motor rotates stably and whether the force is sufficient all depend on whether the control signal is given accurately. As a professional supplier, we recommend this classic module specifically designed for processing sensor feedback signals to you, in order to enable your drive system to accurately understand the state of the motor, completely get rid of motor oscillation or control failure caused by signal deviation, and help the production line regain its original accuracy.

Characteristics

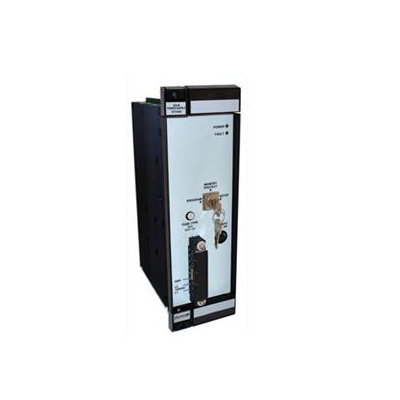

When you hold this Reliance Electric 45C44, the first impression is that it exudes an "industrial style", carrying a distinct sense of the heaviness characteristic of that era. It is a standard design module, with the casing usually made of heat-resistant dark plastic or metal materials. The surface is very neat and there are no unnecessary corners. The most noticeable feature is the row of connection terminals and adjustment knobs on the panel, and some versions may also have status indicator lights. The connection terminals are designed in an elegant way, facilitating the wiring operations for on-site electricians. The labels on the panel are clearly visible, although there might be some signs of age, but it is still possible to clearly distinguish the functions of each channel. The overall design is very practical, giving a sense of reliability that this should be used in an electrical cabinet.

Structure

This Reliance Electric 45C44 incorporates a sophisticated operational amplifier circuit and an isolation transformer. The most exquisite is its "photoelectric isolation" or "magnetic isolation" design, which is to completely separate the strong electric signal on the scene and the weak electric signal on the side of the control room, to prevent high voltage from flowing in and burning the controller behind. The circuit board layout is very compact, with components arranged neatly, and each solder joint appears very full. The back installation latches or guide slots are designed very solidly, ensuring that the device will not loosen when inserted into the rack. The structure is quite solid.

Application scenario

This module is used in an extremely wide range of applications. The most common ones include speed control for steel mills' rolling machines, tension control systems for paper mills, and temperature and pressure collection systems for various old production lines. Any situation where a Reliance Electric drive system is used, where the weak signals from on-site sensors need to be amplified and isolated, and then transmitted to the control motherboard, this Reliance Electric 45C44 is definitely the main force. It acts as the translator between on-site perception and brain decision-making.
