Siemens 6AV6648-0CE11-3AX0

Rayon Automation offers a wide range of models, including the original Siemens 6AV6648-0CE11-3AX0, which is a SIMATIC HMI SMART 1000 IE V3 industrial touch screen panel specially designed by Siemens for small and medium-sized automation control systems. The device is equipped with a 10.1-inch wide-screen TFT color display, supporting a high-resolution display of 65,536-color. It integrates RS422/485 serial ports and Ethernet (RJ45) communication interfaces, enabling seamless connection to main control PLCS such as Siemens S7-200 SMART and S7-1200. You can obtain more models from us.

Send Inquiry

Product Description

As a supplier, Rayon Automation offers the Siemens 6AV6648-0CE11-3AX0 for use in on-site environments with oil stains or moisture. The front panel meets the IP65 protection standard, effectively preventing dust and splashing liquids from entering the cabinet interior. USB 2.0 interface is integrated in the hardware level, which is not only convenient for field technicians to use U disk to import engineering projects and update firmware, but also can be used to export historical alarm data and production curve.

Product features

Wide viewing Angle and high contrast: The appearance is 10.1 inch TFT display has good viewing Angle and contrast, even in the side of the cabinet can also clearly read parameters. Even on the side of the cabinet, parameters can be clearly read.
Strong software compatibility: The Siemens 6AV6648-0CE11-3AX0 supports Siemens' free WinCC Flexible SMART configuration software. Project migration and interface development are simple and quick.
High reliability hardware: internal fanless design, heat dissipation by natural convection, reduce the risk of internal short circuit caused by fan failure suction dust.

Export Cases

The industrial control products of Rayon Automation have been exported in bulk to more than 40 countries and regions around the world, including Mexico, Brazil, Turkey, Poland, the United Arab Emirates, Vietnam, Indonesia, etc. We are familiar with the import customs declaration requirements of each country and can quickly issue invoices, packing lists and COO certificates that comply with customs regulations.

Technical Specifications

Parameter Item	Parameter Value / Description
Model Number	6AV6648-0CE11-3AX0
Display Size and Type (Display)	10.1-inch TFT widescreen display
Display Colors and Resolution	65,536 colors, 1024 × 600 pixels
Interface Configuration (Interfaces)	1 × Ethernet (RJ45), 1 × RS422/485 (DB9), 1 × USB 2.0
Rated Supply Voltage (Input Voltage)	24 V DC (range: 19.2 V to 28.8 V DC)
Front Panel Protection Grade (Front Protection)	IP65 / NEMA 4x (applicable only in indoor environments)
Cutout Dimensions	259 mm (W) × 193 mm (H)

Logistics and Packaging Advantages

In response to the extremely high requirements for shock resistance and anti-static properties of industrial electronic products, Rayon Automation has established standard overseas air and land transportation packaging procedures, including original Siemens anti-static liners and hard cardboard boxes. Before delivery, we will wrap the original cartons in a high-density EPE foam protective silo with a thickness of no less than 3cm, and the outer layer is sealed with five layers of corrugated and thick export special outer boxes. We have established deep cooperation with DHL, FedEx, UPS and SF Express International, supporting global express delivery and full tracking of the entire logistics process.

Structural Advantages

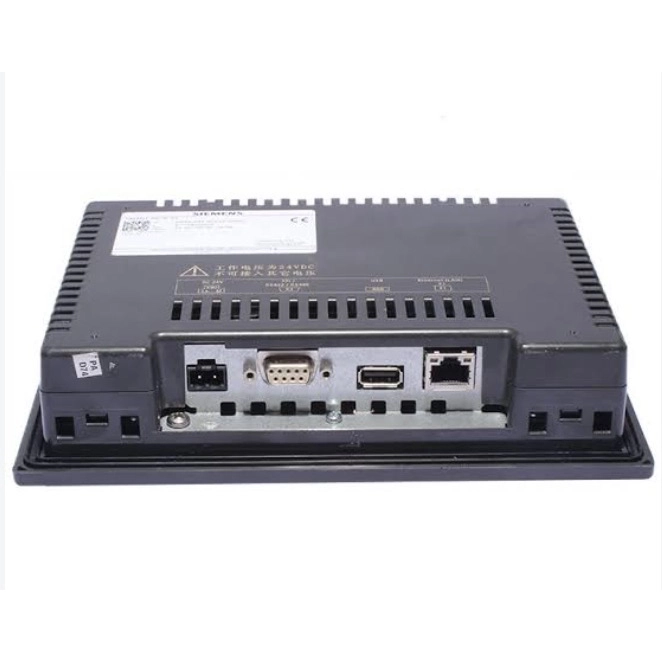

The Siemens 6AV6648-0CE11-3AX0 adopts a compact embedded structure design. The front side features a 10.1-inch high-resolution TFT display screen and a highly durable casing; The back contains a 24V DC industrial power terminal, RS422/485 isolated serial port (DB9 female), Ethernet RJ45 interface, USB 2.0 interface, and removable cabinet mounting snap slot. The casing material uses high flame-retardant engineering plastic, achieving a balance between lightweight and mechanical strength.

Specifications and related model expansion

The SMART HMI series includes a variety of size specifications to accommodate the space requirements of different control cabinet panels. Rayon Automation has the following commonly used models in its warehouse inventory:
6AV6648-0DC11-3AX0: SIMATIC HMI SMART 700 IE V3 (7-inch TFT touchscreen).
6AV6648-0CE11-3AX0: SIMATIC HMI SMART 1000 IE V3 (10.1 "TFT touch screen, this product).
6ES7288-1SR20-0AA0: Programmable controller with SIMATIC S7-200 SMART CPU SR20.

Specifications and related model expansion The SMART HMI series includes a variety of size specifications to accommodate the space requirements of different control cabinet panels. Rayon Automation has the following commonly used models in its warehouse inventory: 6AV6648-0DC11-3AX0: SIMATIC HMI SMART 700 IE V3 (7-inch TFT touchscreen). 6AV6648-0CE11-3AX0: SIMATIC HMI SMART 1000 IE V3 (10.1 "TFT touch screen, this product). 6ES7288-1SR20-0AA0: Programmable controller with SIMATIC S7-200 SMART CPU SR20.

FAQ

Can SMART 1000 IE V3 be connected to Siemens S7-300 or S7-1500 PLC?
The SMART series touch screen is mainly developed for S7-200 SMART and S7-1200. If you need to connect S7-300 or S7-1500, it is recommended to choose Siemens SIMATIC smart panel (KTP series or TP series).

Where can the screen assembly software be downloaded?
With WinCC Flexible SMART configuration software, you can download it directly from Siemens official support website, or contact Rayon Automation customer service for official installation package and connection documentation after purchase.

How to ensure that the touch screen sent out will not crack during transportation?
We use custom high-density EPE foam to wrap the original cardboard box and use a thickened hard export outer box, which can effectively absorb external force impact. All transport packages are purchased a full transportation insurance.
