Siemens 6GK1901-1GA0

Rayon Automation, as an exporter in China, is a spot supplier of industrial automation equipment and accessories as well as a system integration provider. We have been providing genuine Siemens 6GK1901-1GA00 wire stripping tools and related industrial network cables and RJ45 connector accessories for overseas factories, engineering contractors and automation system integrators for a long time.

Product structure

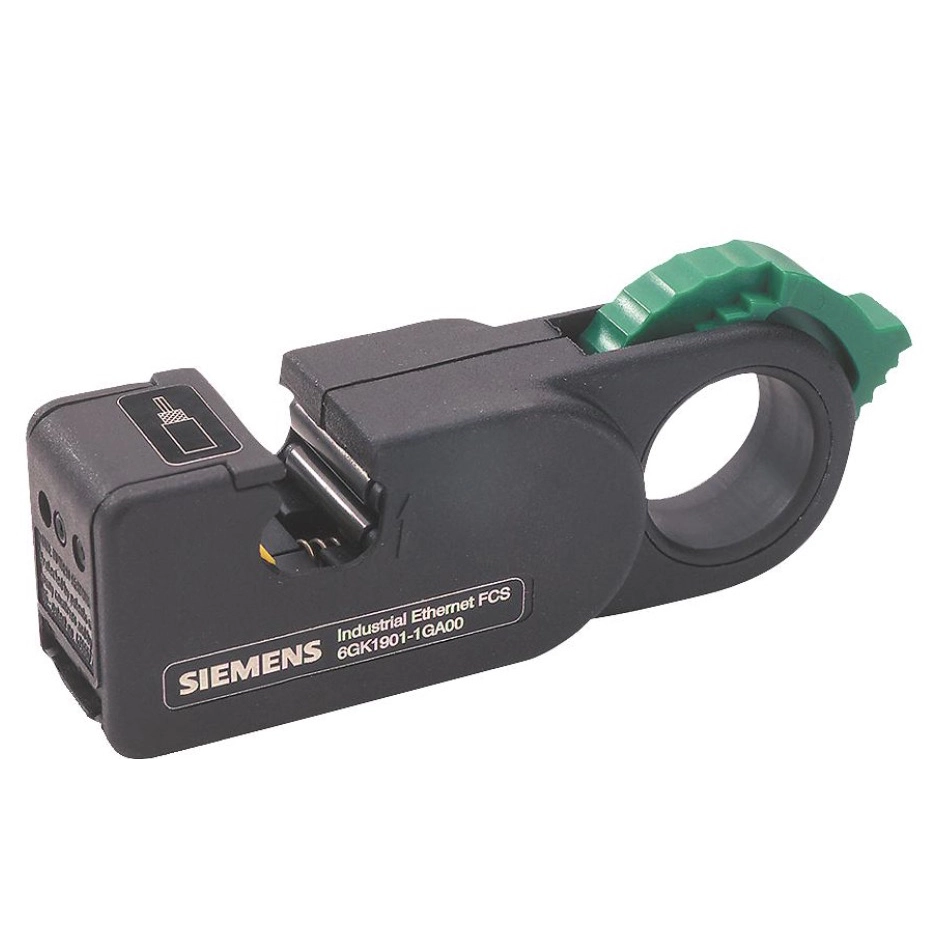

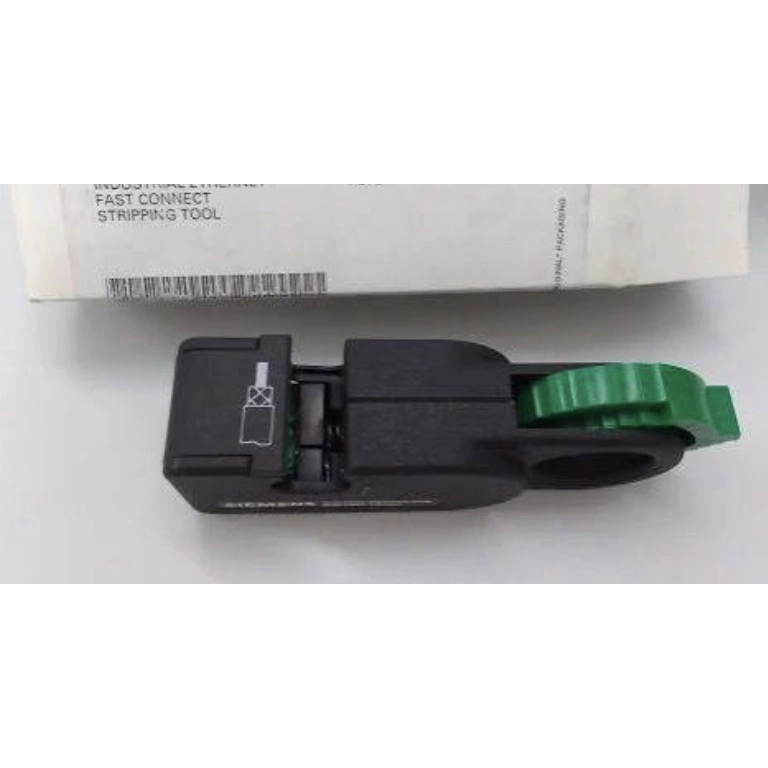

The tool side of the Siemens 6GK1901-1GA0 model is marked with clear arrows indicating the insertion direction of the cable and a diagram showing the length of the stripping. This prevents on-site workers from damaging the cable due to incorrect operation direction. It mainly consists of four parts: a double and half type handle body with anti-slip lines, a replaceable preset Blade Cassette, a blade depth adjustment screw and a spring reset mechanism.

Technical Specifications

Product features

1. Just insert the cable into the slot, clamp it and rotate 2-3 times to simultaneously complete the peeling of the outer skin and the shielding layer, without the need for a second trimming.

2. protect the copper wire core, the preset cutting depth after engineering calculation, the blade only cuts through the outer plastic and aluminum foil, will not bite the inner 22AWG/24AWG copper conductor.

3. When the blade becomes dull after long-term use, there is no need to discard the entire tool. Just replace it with the dedicated Siemens 6GK1901-1GA0 blade box to restore it to its original condition.

Application scenario

Industrial automation network setup: Field connections of PLC systems, frequency converters, and HMI human-machine interfaces using PROFINET or Industrial Ethernet protocols.

Factory workshop network renovation: Rapidly lay shielded Ethernet in strong electromagnetic interference environments such as steel mills, automobile manufacturing plants and chemical industrial parks.

Cabinet integration and assembly: control cabinet manufacturers perform a large number of FastConnect network cable cutting and joint crimps in the cabinet.

Product differentiation advantage

It can ensure that the entire industrial Ethernet system meets the CAT5e/CAT6 transmission standards. There are a large number of low-priced counterfeit or general-purpose network stripping pliers in the market, with the blade depth not adjustable or not matching the special thickness of Siemens FastConnect cables, which can easily cut the shielding layer, resulting in a decrease in the network's anti-interference ability. The Siemens 6GK1901-1GA0 supplied by Hongjia Machinery is the original authentic product of Siemens, and the incision size is perfectly consistent with the internal guide groove of Siemens FC connector.

FAQ：

Can 6GK1901-1GA00 be used to strip ordinary household CAT6 network cables?

The outer skin of ordinary household network cables is softer and has a smaller outer diameter, so the stripping size may deviate. It is specifically designed for the outer diameter (about 6.5mm) and hard PVC/PUR outer skin of Siemens FastConnect industrial cables.

How many times can a blade box strip a cable?

Under normal stripping standards for industrial network cables with PVC outer skin, the lifespan of an original blade box is usually around 1500 to 2000 times. If stripping PUR wear-resistant outer skin cables, the lifespan will be shortened.

Can you guarantee that the products you ship are genuine Siemens products?

We promise that all Siemens parts sent are original authentic products, with Siemens factory QR code and anti-counterfeiting bar code, to support customers to carry out anti-counterfeiting verification after receiving the goods.

After-sales Service Advantages

For all Siemens tools and automation accessories purchased by Rayon Automation, we offer comprehensive quality control and quality assurance services. If the customer discovers the packaging damage or non-artificial quality defects after receiving the goods, we promise to replace the new goods free of charge immediately after verification. We provide electronic illustrations of the instructions and the demonstration video of the joint crimping operation with the goods to ensure that the on-site workers can quickly master the use method.
