GE Fanuc IC697PCM711

Rayon Automation has specially prepared a key component for overseas industrial automation engineers and system maintenance experts, which plays the role of a "co-pilot" in complex control systems - the GE Fanuc IC697PCM711. When conducting large-scale production line control or process optimization, people often encounter situations where the main CPU is too busy or needs to handle extremely complex mathematical operations and conversion of specialized communication protocols. In such cases, if relying solely on the main CPU, the scanning cycle of the entire system will be prolonged, resulting in slower equipment response. This programmable coprocessor module is specifically designed to solve these problems of "overloaded computing" and "special communication requirements". It can help the main CPU undertake the heavy computing tasks or act as a translator between the system and other intelligent devices. As your professional industrial control partner, we recommend this product with excellent computing ability after in-depth functional testing to you, in order to make your control system run more light and smooth, and completely bid farewell to the system stutter caused by computing power bottleneck. We offer competitive prices. If you need it, please come and purchase at any time.

Characteristics

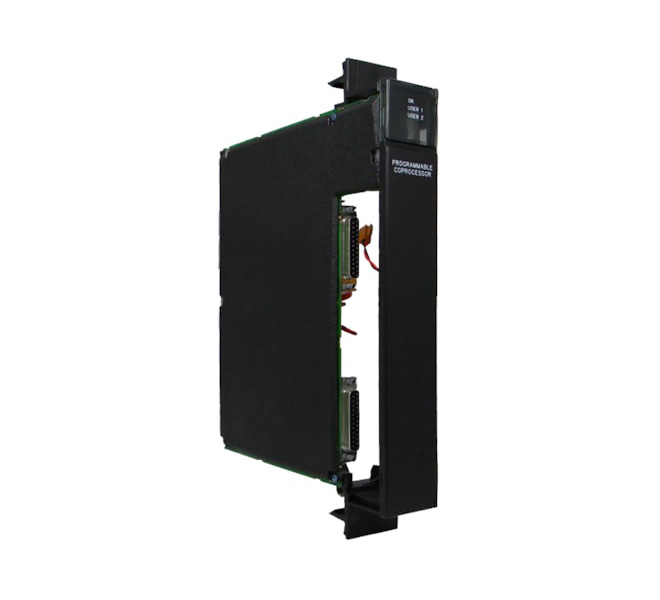

When you hold this GE Fanuc IC697PCM711, you will find that it is a very thick single-slot module. Its appearance continues the classic dark green engineering plastic style of the 90-70 series, looking very much like an industrial equipment with a heavy feel. The most prominent feature is the two function indicator lights on the panel, namely the "OK" light and the "ACTIVE" light. By observing the flashing states of these two lights, you can intuitively determine whether it is in normal operation, programming mode, or fault state. Usually, below the panel, there is a serial communication interface, such as the 9-pin D-shaped port, which is the window through which it communicates with external devices. The overall workmanship is very solid, feeling heavy in your hand. The component layout is compact, and it is clearly a designally rigorous industrial-grade computing board card, with very distinct features.

Specification

Product model: GE Fanuc IC697PCM71

Module size: Standard dual-width module size (occupying 2 slots)

Module weight: Approximately 1.0 - 1.5 kilograms

Interface type: Backside multi-pin bus interface + Front serial interface

Packaging method: Anti-static bag + Foam box + Strong cardboard box

Accessory list: Module body + Label strip (excluding external cables)

Storage conditions: Dry, ventilated, away from strong magnetic fields

Structure

This GE Fanuc IC697PCM711 is essentially a standalone single-board computer, which means it has its own independent CPU, memory and firmware system. The core part is a high-performance microprocessor, which is specially used to execute the C or ladder diagram programs written by the user. Its storage architecture is ingeniously designed, with onboard static random access memory (SRAM) for program execution and a read-only memory (ROM) for storing system firmware. To achieve high-speed data exchange, it integrates a backplane interface controller internally, which can directly read data from the PLC memory, as fast as two people passing something directly to each other. This structural design not only ensures that it can think independently but also works closely with the main CPU, and the design is quite scientific.

Human resource advantage

The technical service team of our company consists of experienced experts who have been dealing with the 90-70 system for many years. They are well-versed in the C programming environment, hardware configuration, and common troubleshooting for "co-processor timeout" issues. If you do not know how to transfer data from the coprocessor to the PLC, or encounter a communication error, tell our technical staff, they can immediately help you analyze the reason, guide you to solve. This hands-on technical support can save you a lot of trial-and-error time.
