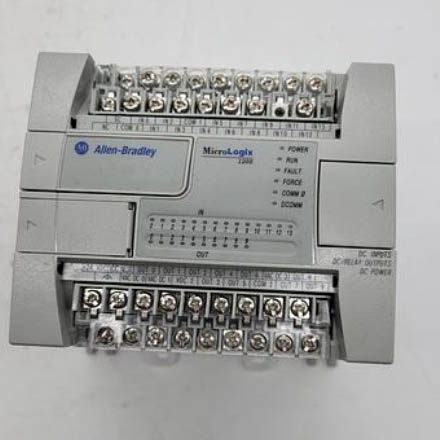

Allen Bradley 1762-L24BXB

The high-quality Allen Bradley 1762-L24BXB from Rayon Automation is a very classic and highly utilized compact integrated programmable logic controller (PLC) in the Rockwell MicroLogix 1200 series. "L" stands for controller, "24" represents 24-point I/O, "B" represents relay output, "X" represents AC power supply, and "B" represents built-in Ethernet communication. You can get more information from us.

Send Inquiry

Product Description

Rayon Automation offers the CE-certified Allen Bradley 1762-L24BXB, which combines the three most popular elements in industrial sites - AC power supply, relay output, and Ethernet communication - in an ideal way. It is an excellent choice for replacing old relay control cabinets or for creating an automated control system for small single-machine equipment.

Product features

1. This is a miniature PLC that integrates CPU, power supply, I/O points and communication interfaces into a single housing. It is compact in size and is highly suitable for installation in electrical control cabinets with limited space.
2. It comes with 24 I/O points and can independently control small and medium-sized equipment without the need to purchase additional expansion modules.
3. It is equipped with 10 relay (Dry Contact) output points, which can control both AC loads and DC loads, has strong load-carrying capacity, excellent electrical isolation performance, and strong anti-interference ability.
4. The Allen Bradley 1762-L24BXB is powered by an AC power supply and can operate directly by connecting to the mains power in the industrial site.

FAQ

Does the built-in Ethernet port support EtherNet/IP? Can it be connected to the HMI?
Yes, the built-in Ethernet port supports the EtherNet/IP protocol and can be used to connect Rockwell's PanelView terminal, third-party touch screens that support EtherNet/IP, or communicate with the upper-level SCADA system.
Does the built-in Ethernet support Modbus TCP?
The native version does not support Modbus TCP as a server or client. If Modbus TCP must be used, an additional communication module such as 1762-ENBT needs to be purchased.
How to assign an IP address to the PLC?
When the factory is in default state, the IP address and subnet mask of the Ethernet port are usually 0.0.0.0. You need to use the Rockwell BootP-DHCP Server software installed on your computer to find the PLC by its MAC address, then assign it a static IP address, and finally click "Disable BootP/DHCP" to make it permanent.
What is the function of the battery? How often does it need to be replaced?
The Allen Bradley 1762-L24BXB does not have a replaceable memory battery bracket. It uses supercapacitors to maintain the clock and some memory data. After power loss, the supercapacitors usually can keep the data for several days to about two weeks. How much user program memory does it have? Is it sufficient?
10K bytes of program memory and 10K bytes of data memory. It is sufficient for general stand-alone equipment and small assembly lines.

Parameters

Specification	Details
Product Series	MicroLogix 1200
User Program Memory	10 KB
Data Memory	10 KB
System Power Consumption	Maximum 35 VA
Input Voltage Type	Alternating current (AC)
Rated Operating Voltage (Power)	85 ~ 265V AC
Operating Frequency	47 ~ 63 Hz
Maximum Surge Current	20 A
Rated Operating Voltage (I/O)	24V DC
Maximum Input Current Per Point	4.5 mA
Maximum Switching Voltage	265V AC / 30V DC
Mechanical Life	2,000,000 times
Electrical Life	100,000 times
Working Environment Temperature	0°C ~ 55°C (32°F ~ 131°F)
Storage Environment Temperature	-40°C ~ 85°C (-40°F ~ 185°F)
Relative Humidity	5% ~ 95% (no condensation)
Vibration Resistance	Compliant with IEC 60068-2-6 standard
Impact Resistance	Compliant with IEC 60068-2-27 standard
Enclosure Protection Class	NEMA/UL Type 1 (IP20)
Dimensions (H x W x D)	90 mm x 140 mm x 87 mm (3.54 in. x 5.51 in. x 3.43 in.)
Weight	Approximately 0.45 kg (1.0 lb)

Our Certification

The Allen Bradley 1762-L24BXB is equipped with comprehensive international safety and compliance certifications. It has UL/cUL Class I, Division 2 Groups A, B, C, D hazardous environment certifications, as well as CE certification in accordance with the EU EMC and Low Voltage Directive, and also meets the C-Tick (RCM) electromagnetic compatibility standards of Australia/New Zealand. We have the manual and guarantee the original product.
