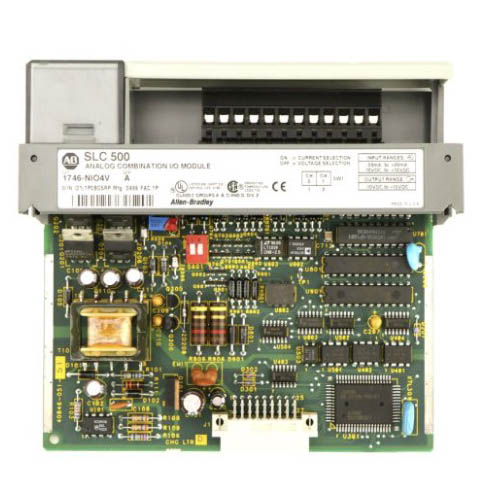

Allen Bradley 1746-NIO4V

Rayon Automation Technology Co., Ltd. Purchase the Allen Bradley 1746-NIO4V at a low price with high quality, along with the classic SLC 500 series modular I/O module. This combination offers the advantages of no configuration word programming and integrated input/output, making it highly suitable for the renovation or integration of small devices that only require the processing of two voltage signals.

Send Inquiry

Product Description

Rayon Automation Technology Co., Ltd. As a supplier, the Allen Bradley 1746-NIO4V product offers relatively weak load capacity and lacks electrical isolation between channels. During wiring, it is essential to avoid using both high-voltage and signal lines together. If you are looking for something, please contact us as soon as possible.

Parameters

Specification	Details
Model	Allen Bradley 1746-NIO4V
Resolution	12-bit (counting from 0 to 4095)
Accuracy (at 25°C)	±0.5% of full scale (maximum ±1% within 0-60°C)
Input Impedance	> 1 MΩ
Step Response Time	Approximately 60 ms (including filter time)
Maximum Overload Voltage	±15V DC (without damage)
Backplane Current Consumption	50 mA at 5V DC
Operating Temperature	0°C ~ 60°C (32°F ~ 140°F)
Storage Temperature	-40°C ~ 85°C
Relative Humidity	5% ~ 95% (no condensation)
Output Ripple	< 10 mV peak-to-peak

Application scenarios:

1. Read two 0-10V valve opening feedback signals (input), and output two 0-10V/±10V signals to control the valve actuator (output).
2. Allen Bradley 1746-NIO4V outputs 0-10V signals to the frequency converter to adjust the motor speed. Reading the actual motor speed feedback or load voltage is done through voltage input.
3. Combined with 0-5V/0-10V output pressure transmitters or temperature transmitters, perform PID closed-loop regulation.
4. Used to generate adjustable voltage excitation signals (output) and collect the voltage response of the sensor (input) in laboratory equipment.

Advantages and Features

The Allen Bradley 1746-NIO4V adopts a highly integrated Combo design, using a single slot, providing pure voltage-type channels with 2 input and 2 output. It supports direct board data access. Data can be mapped to the I/O image table without the need for complex block transfer instructions. The combination of 12-bit or 13-bit high resolution and precision with industrial-grade photoelectric isolation and filtering anti-interference technology enables efficient space and cost savings for compact control cabinets in the after-sales service.
