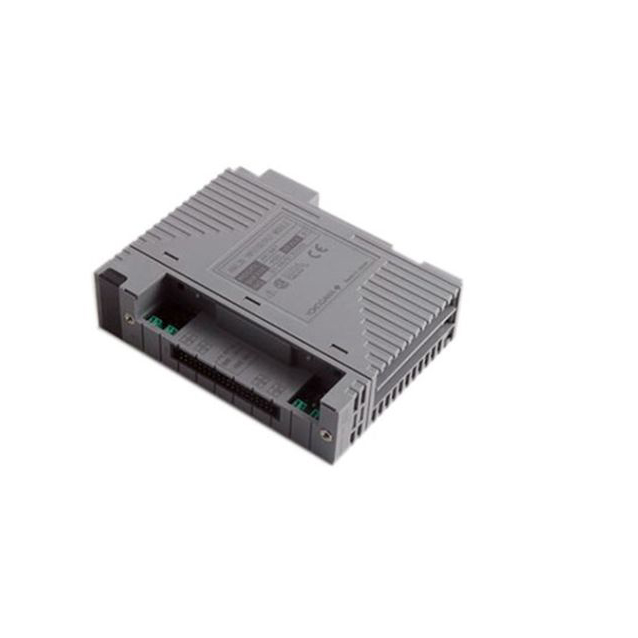

Yokogawa AAI543

Hanhui Guan Company, as a professional manufacturer, has specially prepared a signal conversion device that is quite "classic" in the field of automation for overseas process control engineers - the Yokogawa AAI543 analog output module. As you all know from your daily maintenance work or project expansions in the factory, for the DCS system to precisely control the valve opening or frequency of the frequency converter on-site, it all depends on this output module to issue commands. We recommend this "established powerhouse" of Yokogawa to you, in order to enable your Centum system to stably and reliably drive the on-site equipment, completely eliminating the process fluctuations caused by unstable signal output, and keeping the production process always under control.

Structure

As a leading global provider of automation solutions, Yokogawa places high demands on the quality of its products, and the Yokogawa AAI543 utilizes advanced manufacturing processes and stringent quality control to ensure that every module that leaves the factory meets the highest standards. This dedication to quality has resulted in the AAI543's outstanding performance over long periods of operation, dramatically reducing the frequency of maintenance and replacement and providing significant cost savings to users.This Yokogawa AAI543 analog output module integrates a digital-to-analog conversion circuit, which converts the digital values calculated by the controller into 4-20mA current signals that the field equipment can understand. To ensure that the signals do not interfere with each other, it performs channel isolation in the circuit design, separating each output circuit to prevent the high voltage interference from the field from damaging the valuable CPU unit. The gold pins on the back are arranged very neatly and have a thick coating, which is to ensure the reliability of the connection with the baseboard. After all, this type of card may remain unused for several years after being plugged in, and poor contact is a big no-no. The workmanship of Yokogawa in this aspect is truly outstanding.

Characteristics

When holding this Yokogawa AAI543 module in your hand, the first impression is that it is "standardized" and "solid". It adopts the standard card-panel design of Yokogawa Electric Corporation. The casing is made of a kind of high-quality engineering plastic, and the color is usually the typical color for modular design. When inserted into the cabinet, it looks very pleasing to the eye. The layout on the front panel is very clear. The most prominent feature is the row of status indicator lights, which can immediately reflect the working status of each channel. These lights are not just for decoration; during debugging, when you stand in front of the cabinet, you can immediately tell which channel is outputting, which channel has no signal, or which channel has an error. This intuitive feedback is simply too convenient for those who are troubleshooting on-site.

Specification

Product model: Yokogawa AAI543

Module size: Standard An I/O single width

Installation method: Installed on An series rack

Weight: Approximately 0.6 kilograms

Operating temperature: 0°C to 55°C

Storage temperature: -20°C to 70°C

Relative humidity: 5% to 95% (no condensation)

Terminal block: MXS series terminal board (front connection)

Certification system: CE, UL, FM

Human resource advantage

The technical experts in our factory are all experienced employees who have been working with the Yokogawa system for many years. They were familiar with how the module was defined in the system, the wiring specifications, and the common "output hold" and "break alarm" Settings. If you notice any abnormalities in the module's output during the on-site inspection, just inform our technicians and they will immediately help you analyze whether the parameter settings are incorrect or there is a problem with the external wiring. This hands-on technical support can save you a lot of time spent on on-site troubleshooting and get your equipment up and running sooner.
