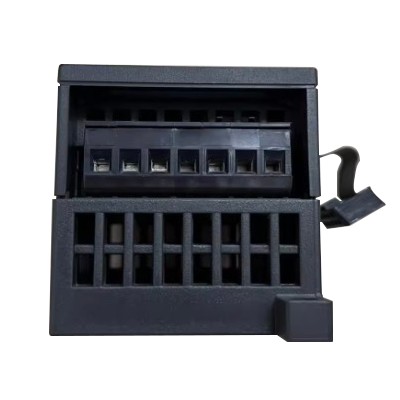

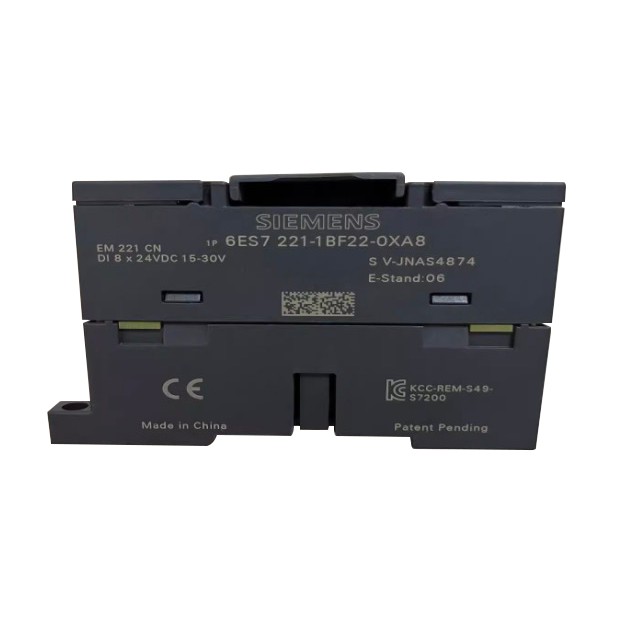

Siemens 6ES7221-1BF22-0XA8

Siemens 6ES7221-1BF22-0XA8 digital output module, as an important part of Siemens SIMATIC S7-1200 series, is not only powerful in function, but also excellent in reliability, making it a powerful tool in the field of automation control.
The working principle of the Siemens 6ES7221-1BF22-0XA8 digital output module involves converting the digital signal of the CPU module into a switch signal in the physical world to control the on and off of the external circuit. When the CPU module sends a high-level signal, the internal circuit of the module processes the signal to ensure that it is stable and reliable, and then the corresponding relay contacts are closed, thereby connecting the external circuit. The Siemens 6ES7221-1BF22-0XA8 digital output module integrates 8 independent digital output channels, realizing multi-point control requirements in a compact space, greatly improving the output density and flexibility of the system; the 6ES7221-1BF22-0XA8 supports a voltage range of up to 230V AC/30V DC, and can adapt to different types of loads, whether AC or DC, and each output channel can carry up to 2A of current, which is sufficient to meet the load requirements in most industrial control applications, ensuring that the module has a strong driving capability.

Number of channels: The Siemens 6ES7221-1BF22-0XA8 provides 8 digital output channels.
Output type: The outputs are relay outputs, suitable for controlling AC or DC loads.
Voltage range: The relay outputs can withstand voltages up to 230V AC/30V DC.
Current capacity: The maximum current capacity of each channel is 2A.
Diagnostic function: The Siemens 6ES7221-1BF22-0XA8 has diagnostic functions that can monitor the output channels for short circuits and open circuits.
Safety: The 6ES7221-1BF22-0XA8 is designed with safety factors in mind, including channel isolation and overload protection.
