Hanhuiguan sincerely recommends China Siemens 6ES7193-6BP00-0BA0 basic unit if you are looking for a high-quality device designed for medium-scale automation tasks. The device stands out among similar products with its compact structural design and high reliability industrial performance. It is particularly suitable for deployment in industrial environments with limited space and high stability requirements. As a reliable supplier, you can ensure that the products you get are of high quality. If you are interested in this device or have any questions about the technical specifications, please feel free to send an inquiry, and our professional team will provide you with detailed answers as soon as possible.

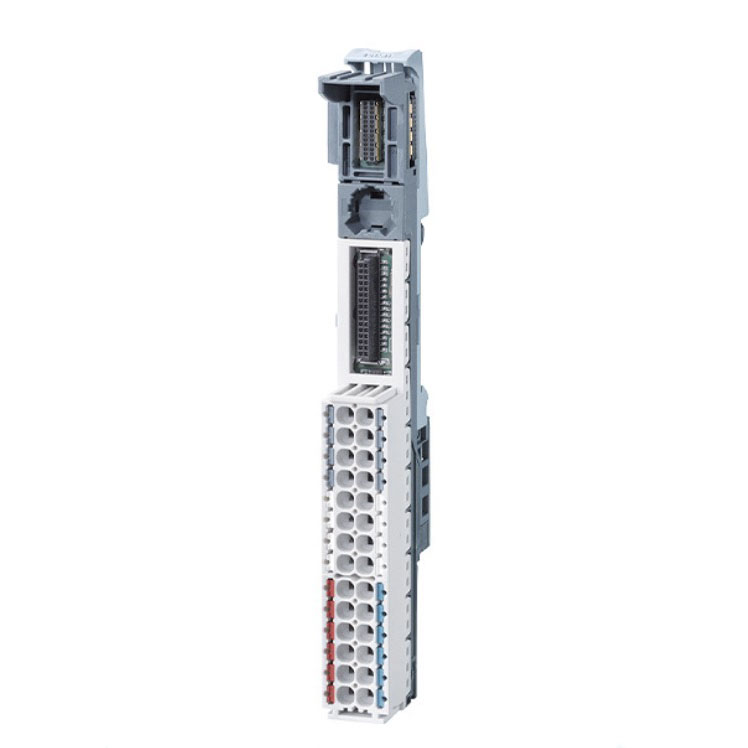

Model identification BU15-P16A02B is a base unit (Base Unit) in the popular SIMATIC ET 200SP series, which adopts a plug-in terminal design. This means that users can choose the appropriate digital or analog I/O modules according to actual needs and "plug" them directly into the reserved slots of the base unit. This design greatly simplifies on-site wiring. There is no need for complex welding or connecting external terminal blocks. Just align the module with the slot and press it gently to complete the installation, which saves time and facilitates subsequent maintenance.
In the SIMATIC ET 200SP series, multiple modules (including base units and I/O modules) can be connected to form a complete I/O station through the backplane bus. In order to ensure that current and signals can flow smoothly through the entire bus, adjacent modules usually need to be "bridged", that is, physically connecting their contacts on the backplane bus to ensure the continuity of the connection.
Parameter
Model
|
6ES7193-6BP00-0BA0
|
Type
|
A0 base unit
|
Dimensions
|
W x H = 15 x 117 mm
|
Weight
|
Approx. 40 g
|
Operating Voltage
|
DC 24V
|
Operating Temperature
|
Horizontal: -30°C to 60°C
Vertical: -30°C to 50°C
|
Altitude Limit
|
Maximum installation altitude: 5000 meters
|
Terminal Type
|
Push-In terminal
|
Interface Cross Section
|
0.14 mm² to 2.5 mm²
|
Expansion Capability
|
Supports automatic coding and potential group establishment
|
Certification
|
CE, UL, 3C
|
How to perform automatic coding?
Automatic coding is a function in the Siemens ET 200SP system that allows the system to automatically identify and assign module addresses and functions. When the signal module is installed on the Siemens 6ES7193-6BP00-0BA0, the system can automatically read the module information through the backplane bus and assign it the corresponding address and function.
Note
Ensure module compatibility: Before installing 6ES7193-6BP00-0BA0, confirm its compatibility with the base unit.
Check software version: The version of TIA Portal must be compatible with the module firmware version, otherwise it may cause communication problems.
Power grouping requirements: If the module power supply requirement exceeds 10A, a base unit that supports power grouping must be used.
