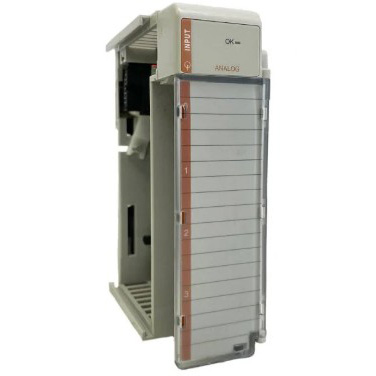

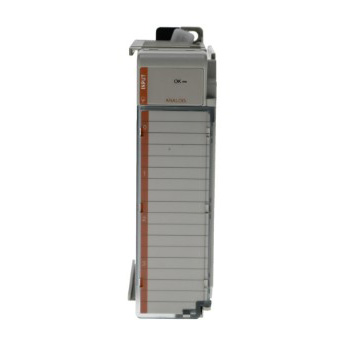

Rockwell 1769-IF4

Rayon Automation has specially prepared a very classic "signal conversion bridge" - Rockwell 1769-IF4 - for overseas PLC control engineers, equipment renovation project managers, and industrial maintenance technicians working in the CompactLogix and MicroLogix 1500 systems. When maintaining old equipment or building small control systems, people often encounter such an awkward situation: there are only two or three pressure transmitters or temperature sensors on site. Buying a large multi-channel module would take up space and waste money. This 4-channel analog input module precisely addresses the need for "small-scale precise acquisition". It can accurately translate the voltage or current signals transmitted from the site into digital codes that the PLC processor can understand, ensuring that your frequency converter speed control and liquid level monitoring are stable. As a supplier well-versed in Rockwell products, we recommend this high-quality product that has undergone single-channel accuracy calibration and communication bus testing to you, in order to make your control system both economical and reliable when handling a small amount of analog signal data.

This Rockwell 1769-IF4 model has a very high resolution, capable of dividing analog signals very finely. For instance, when you adjust the motor speed, even a slight movement of the potentiometer will be accurately captured and reflected in the program. Its linearity is particularly excellent, with a strict correspondence between the input signal and the digital reading. There is no need for you to make complex linearization corrections in the program. Its anti-interference ability is also good. After all, industrial frequency converters and large motors in the field are subject to electromagnetic interference. However, this module comes with filtering functions, ensuring stable numerical display without erratic fluctuations. Its range selection is very flexible. Whether it's 0-10V or 4-20mA, it can be easily handled through software configuration. The performance indicators fully comply with the original Rockwell standards, and when used in critical control circuits, it will definitely give you peace of mind.

This Rockwell 1769-IF4 module is quite easy to maintain. Since it mainly collects signals passively and generates little heat on its own, the main focus is on "dust and moisture prevention". If the site environment is relatively humid, it is necessary to regularly check whether the connection terminals are corroded or oxidized. During routine inspections, check if the indicator light on the module is always on green. If you find that the reading is a little inaccurate, you can calibrate it with a calibration instrument. As long as the environmental temperature is suitable and the cabinet has good ventilation, it rarely has problems and can work quietly for many years.

When shipping these modules equipped with precise electronic components, the most worrying issue during transportation is the vibration that could cause the internal solder joints to loosen, or static electricity that might damage the chips. When Rayon Automation ships the products, they are very meticulous. We will first seal and package the modules in professional anti-static shielding bags to completely isolate the static electricity risks. Then, we will place them in custom shock-absorbing foam boxes to ensure that they are securely fixed inside the packaging box and will not suffer physical damage due to the jolts during long-distance transportation. For the outer box, we use high-strength five-layer corrugated cardboard and attach a fragile label. Whether you are shipping by sea across the ocean or by air express, our multiple checks and controls can ensure that it arrives at your hands intact, and once the back plate is inserted, it can be recognized.
