Rockwell 1769-IF16V

Rayon Automation, as a professional supplier, supplies this high-quality Rockwell 1769-IF16V module to the overseas market. It is a high-density front-end component specifically designed for handling high-level analog signal acquisition in the Rockwell CompactLogix control platform. In complex industrial process control, the analog-to-digital conversion resolution and common-mode suppression capability of the analog input board card directly determine the system's perception accuracy of on-site physical quantity changes. If the precise reference voltage source inside the module experiences temperature drift, or the isolation barrier of the input channel deteriorates due to long-term exposure to surge impacts, it is highly likely to cause zero-point drift or full-scale offset in the control loop, thereby triggering PID regulation oscillation and even process out-of-control. The shipping inspection standards we have implemented for this model strictly cover multi-point accuracy calibration across the entire temperature range, verification of high common-mode suppression ratio, and channel-to-channel crosstalk suppression tests, aiming to provide overseas customers with original-grade spare parts with extremely high signal fidelity, ensuring the absolute accuracy and reliability of the conversion process from the underlying voltage signal to the digital domain.

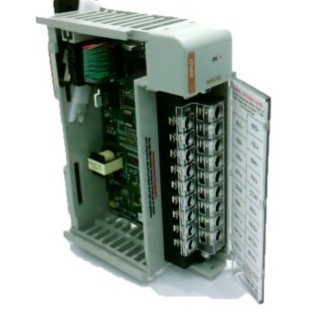

This Rockwell 1769-IF16V adopts the standard modular design of CompactLogix. This structure is a long rectangular box, compact in size, and is designed to be installed in control cabinets with limited space. In terms of its internal structure, it integrates high-resolution A/D conversion chips and signal conditioning circuits. This structure is to ensure the conversion of analog voltage signals is both fast and accurate. The back bus interface structure is quite precise, which is designed to ensure high-speed data exchange with the CPU or communication module, with extremely low transmission delay. The shell structure is made of high-strength industrial plastic, which can effectively insulate and resist a certain degree of physical impact. The circuit board inside the module adopts a multilayer board design, which can well shield external electromagnetic interference. After all, analog signals are most afraid of interference, and this structure ensures the purity of the signal.

The performance of this Rockwell 1769-IF16V module is truly "extremely robust". It has a very high measurement resolution, capable of dividing the 0-10V voltage signal into extremely fine divisions. This is particularly important for situations that require fine adjustment speed or position. Its linearity is excellent, with a strict linear relationship between the input voltage and the reading, without any deviation from the extremes to the middle. Its anti-interference capability is outstanding. You should know that the high-frequency harmonics of the frequency converter in industrial environments are quite severe, but the values measured by this module remain stable and do not jump randomly. Its response speed is also very fast, capable of meeting the control requirements of fast production lines. The performance indicators fully comply with the original Rockwell standards, and when used in critical control circuits, it is definitely reassuring.
