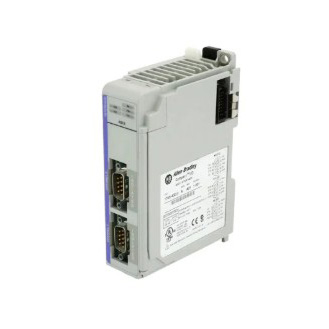

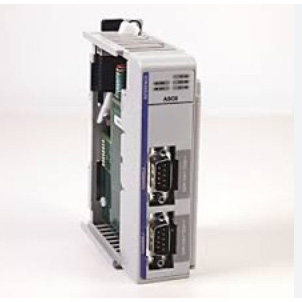

Rockwell 1769-ASCII

Rayon Automation Technology factory has specially prepared a communication tool for overseas equipment manufacturers and system integrators to solve the problem of "incompatible device languages" - Rockwell 1769-ASCII. When working on projects, people often encounter such situations: the barcode scanners, electronic scales or printers purchased only support simple serial communication, while our PLC mainframe uses Ethernet or backplane communication, which are completely incompatible. This ASCII module is specifically designed to act as the "translator". It can "translate" the serial data sent by these devices into a language that the PLC can understand, or send the instructions from the PLC to the peripheral devices. As experienced automation partners, we recommend this product, which has undergone strict communication testing and has stable connections, to you. This is to help you avoid headaches when connecting third-party devices and easily achieve data collection and interaction. Our prices are reasonable. If you need it, please come and purchase at any time.

The core structure of this Rockwell 1769-ASCII actually consists of a high-performance "serial communication gateway". It integrates a dedicated communication processor to handle the reception, transmission and parsing of ASCII code strings. Unlike digital quantity modules which are merely simple switches, it has complex buffer circuits inside, which can temporarily store a large string of data sent by the peripheral devices before processing and then send it to the CPU. Its two ports are independent of each other, meaning you can connect two different devices simultaneously, such as a barcode scanner on the top and a printer on the bottom, without interfering with each other. This "dual-channel independent processing" structural design not only saves space in the control cabinet but also improves the communication efficiency of the system.

The most distinctive feature of this Rockwell 1769-ASCII module is undoubtedly its "extensive compatibility". It doesn't discriminate based on the equipment; as long as it can send ASCII codes, it can generally connect to it. This solves the problem of previous non-standard equipment being difficult to integrate into the PLC system. Another notable feature is its "programming flexibility". You can write logic in the PLC and flexibly define the format of the data. For example, if you want to connect a weighing instrument, you can set to only read certain digits of the weight, and ignore the rest. Its "status monitoring" is also very convenient. You can determine whether a wire is broken or the device is out of power by the indicator lights. The features are very distinct and are particularly suitable for projects that need to interface with complex peripherals.

This module is used in an extremely wide range of applications. The most common one is the packaging and palletizing production line, where it is used to connect barcode readers to record product information; in the food and beverage industry, it is used to connect inkjet printers to print production dates; and in the logistics sorting system, it is used to connect electronic scales for weight verification. In any situation where an external device with a serial port needs to be connected to the CompactLogix control system to achieve automatic data collection and equipment linkage, this Rockwell 1769-ASCII is a standard configuration. It is the key bridge to open up the "Ren Du two veins" of the equipment.
