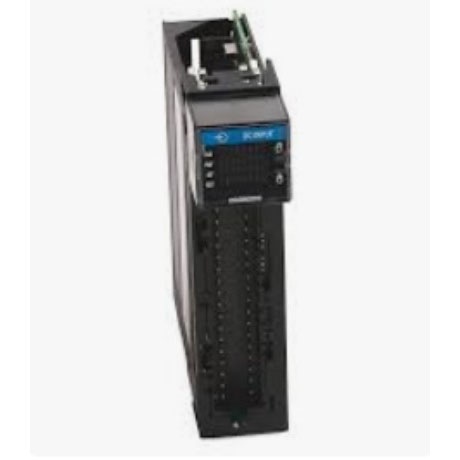

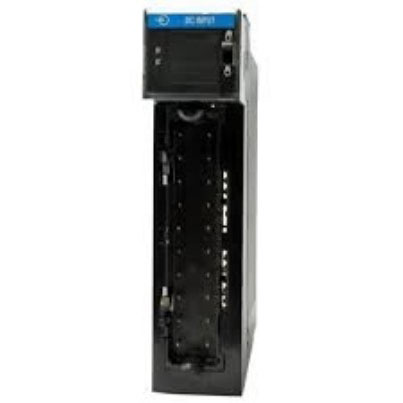

Allen Bradley 1756-IB16D

The customized Allen Bradley 1756-IB16D fom Hanhuiguan is a 16-point 24V DC digital input module that adds health status monitoring capabilities to traditional switch signals. The product supports customization. From consultation to deployment, Hanhuiguan offers a full-process butler-style service. You just need to put forward your requirements, and the rest is up to us.

Send Inquiry

Product Description

Allen Bradley 1756-IB16D from Hanhuiguan supplier is a module that perfectly combines traditional switch input with intelligent diagnostic technology. It adds health monitoring capabilities to key input signals in a relatively economical way and is an important tool for achieving predictive maintenance and improving system availability. It is a very wise investment for enterprises that hope to enhance equipment reliability and reduce unexpected downtime. Zhangzhou Hanhuiguan Trading Co., Ltd. welcomes your contact. We are a professional partner of Rockwell in China and are more than willing to offer you assistance.

Parameters

Category	PLCs
Product Line	ControlLogix
Part Number	Allen Bradley 1756-IB16D
Module Type	Digital DC Input Module
GTIN / UPC	10612598171290
Input Points	16
Input Voltage	12-24 VDC Sink
Operating Voltage Range	10-31.2 VDC
Maximum Input Current (On-State)	10 mA @ 31.2 VDC
Minimum Operating Current	2 mA @ 10 VDC
Maximum Input Current (Off-State)	1.5 mA
Input Delay Time (OFF to ON)	Hardware delay: 290 µs nom / 1 ms max + filter time
Input Delay Time (ON to OFF)	Hardware delay: 700 µs nom / 2 ms max + filter time
General Input Delay Time	2 ms + selected filter time
Module Keying	Electronic
Power Dissipation (Max)	5.1 W @ 60 °C (140 °F)
Thermal Dissipation	21.1 BTU/hr @ 60 °C (140 °F)
Backplane Current (24V)	2 mA
Backplane Current (5.1V)	120 mA
Removable Terminal Block(s)	1756-TBCH, 1756-TBS6H
Weight	0.50 lbs (0.23 kg)

Features

In the past, although physical fool-proof keys could prevent incorrect insertion, they were not flexible enough. The "electronic key" of Allen Bradley 1756-IB16D is matched at the software level. You can set it in the programming software to allow only specific models of modules to be inserted into a certain slot. In this way, even if the physical dimensions of the two modules are exactly the same, if the model is incorrect, the system will still report an error, fundamentally eliminating equipment damage or system failure caused by human negligence in inserting the wrong module.

FAQ

Q1: Is your company legitimate? How can I trust you?
A1: We are Zhangzhou Hanhuiguan Trading Co., LTD., a legally registered enterprise with the Administration for Industry and Commerce of China. We can provide your business license and other qualification documents upon your request. We would rather make one less deal than deceive our customers.

Q2: If what I need is an old and rare module, can you find it?
A2: One of our businesses is to provide scarce spare parts for the existing market. We have a global procurement network, including partnerships with other distributors, Stockholders and recyclers. So, please boldly tell us your requirements. We are more than willing to take on this challenge

Q3: How can I be sure that Allen Bradley 1756-IB16D is a match for my device?
A3: Please tell us the model of the module that needs to be replaced on your equipment, or simply send us a photo. Our technicians will help you conduct a secondary confirmation, checking key parameters such as its series, voltage, and number of channels to ensure everything is in order.
