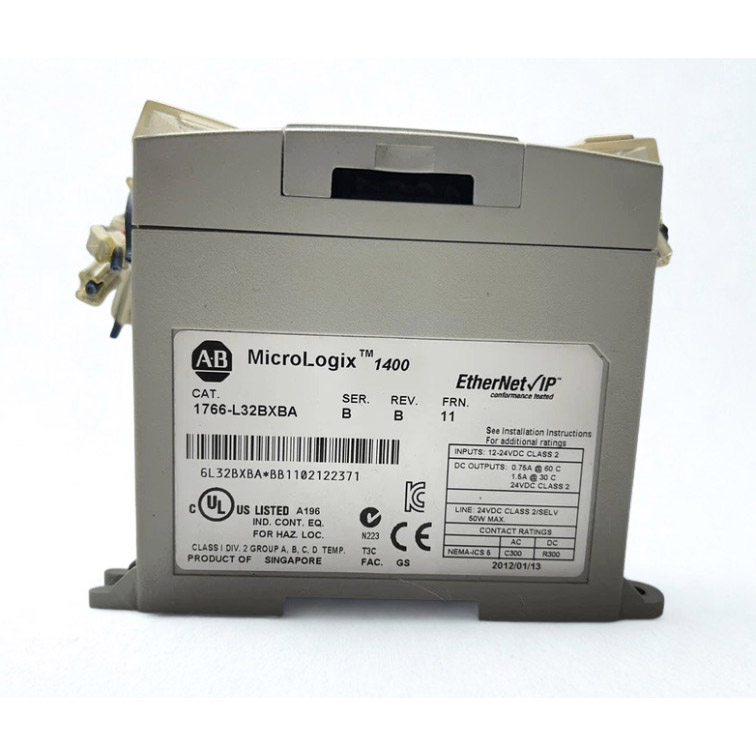

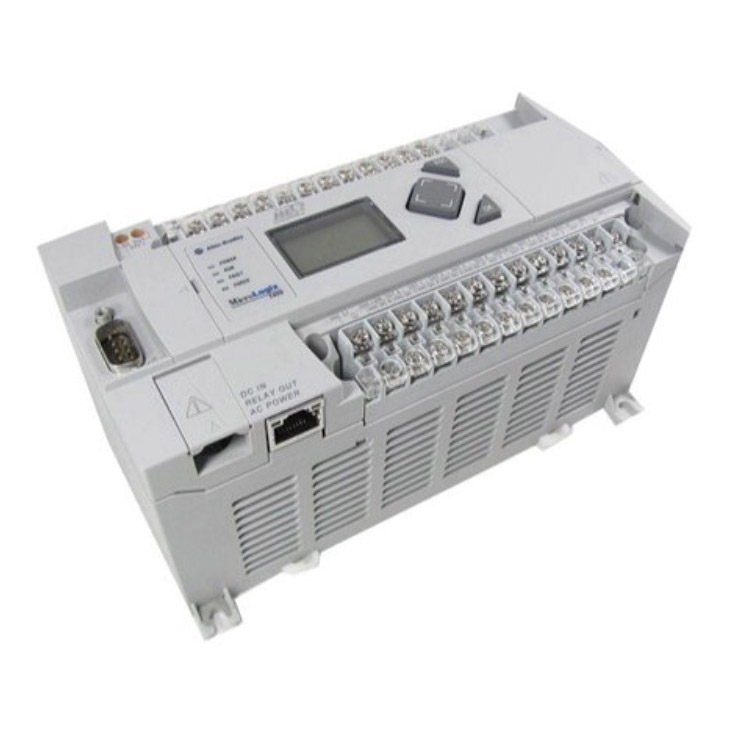

Alan Bradley 1766-L32BXBA
  • Alan Bradley 1766-L32BXBAAlan Bradley 1766-L32BXBA
  • Alan Bradley 1766-L32BXBAAlan Bradley 1766-L32BXBA

Alan Bradley 1766-L32BXBA

Purchase the high-quality Alan Bradley 1766-L32BXBA programmable logic controller (PLC) from Rayon Automation. We have a wide range of brands and models. Please feel free to send us an inquiry for price.32: 32 I/O points.
BX: I/O type and power supply type.
B: Built-in 24V DC direct current power supply
X: Hybrid type of relay output and fast transistor (FET) output.

Send Inquiry

Product Description

As a supplier, Rayon Automation offers high-quality Alan Bradley 1766-L32BXBA, which is a hybrid output architecture combining relays and high-speed transistors. It is highly suitable for use in small and medium-sized stand-alone equipment that requires both conventional logic control and simple motion control.

Core hardware specifications

12-point relay output: Contactor, solenoid valve, indicator light, etc. It has an isolation function and can switch between AC and DC loads.
4-point fast transistor output (FET): The Alan Bradley 1766-L32BXBA has 4 outputs specifically designed for high-frequency switching, supporting PTO (pulse string output) and PWM (pulse width modulation).
User program memory: 4 KB
Data file memory: 4 KB
Communication interface: Built-in RS-232/RS-485 combined ports, supporting DF1 full-duplex/half-duplex protocol, DH-485 protocol, and Modbus RTU master/slave protocol.
Scalability: MicroLogix 1200 is a compact PLC that supports expansion.

Features and Advantages

Alan Bradley 1766-L32BXBA not only supports the online editing function of RSLogix 500 software, but also has a high-speed counter (HSC) with a maximum counting frequency of 20kHz (single phase) or 10kHz (double phase), which is built-in. It supports the Modbus RTU protocol and can be easily integrated into various frequency converters, instruments and third-party systems that mainly use Modbus. It can also access the DH-485 network and communicate with upper-level systems such as SLC 500 through converters like 1761-NET-AIC.

Alternative model

The preferred alternative model for Alan Bradley 1766-L32BXBA is the Micro850 series' 2080-LC50-48QWB with expansion module), whose 48-point I/O includes relay outputs fully covering the original 32-point requirement. It can perfectly replace the original high-speed pulse function by plugging in and unplugging the 2080-MOT-HSC motion control module. If you are seeking a higher-end option, you can choose the current Rockwell mainstream standard CompactLogix 5380 that supports EtherNet/IP. If there is no brand requirement, Siemens S7-1200 is also an option but note that if relay outputs are needed, the DC/Relay/DC model should be selected; the Japanese Mitsubishi FX5U is not a common choice, supporting multi-axis high-speed pulses and high-speed counting, with extremely powerful motion control functions and rich positioning instructions, and is very easy to use. We offer a wide range of brands and models for output. If you have any requirements, please contact us promptly. We can provide customized solutions.
